ASCO選型 numatics-series-adl

Inlet Ball Valve (Lockable-Relieving): Port Sizes 1/4 to 2 NPTF.
Drain Ball Valve: Port Sizes 1/4 & 3/8 (NPTF & ISO228/1-G).
Outlet Port Sizes - 1/4 to 2 (NPTF & ISO228/1-G).
Primed and painted exterior
產品描述：美國ASCO是一家主要生產和銷售流體控制閥以及氣動控制元件的跨國公司，具有100多年的生產技術經驗，在全球擁有超過30家工廠，為客戶提供超過23,000種的流體控制產品。
在線訂購

產品描述服務承諾訂貨流程溫馨提示

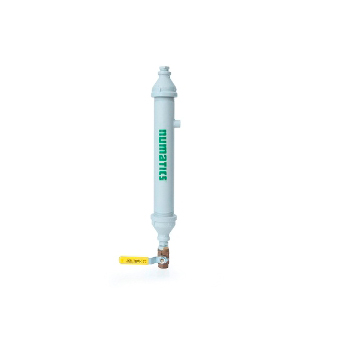

Air Preparation - Drip Legs - Numatics Series ADL
Drips Legs - Bulk water removal from compressed air lines - 1/4 to 2

The Numatics ADL Series Drip Leg in combination with coalescing filtration delivers an efficient and economical package for eliminating water and water aerosols from compressed air systems. Designed with an oversized expansion chamber, the ADL Series offers one of the best water removal efficiencies for drip legs on the market today. Standard features on the ADL Series include 1/4 turn ball valves on the inlet and drain ports which provide customers with a simple solution when system shutdowns are necessary on any "point of use" application. Inlet ball valve is a robust lockable-relieving construction (standard feature) that relieves downstream pressure when in the closed position.

Features:

1）Inlet Ball Valve (Lockable-Relieving): Port Sizes 1/4 to 2 NPTF.
2）Drain Ball Valve: Port Sizes 1/4 & 3/8 (NPTF & ISO228/1-G).
3）Outlet Port Sizes - 1/4 to 2 (NPTF & ISO228/1-G).
4）Primed and painted exterior
5）Expansion chamber is 3 x's the port size for tremendous water removal efficiency.
