ASCO 美國阿斯卡

ASCO選型 numatics-series-NR

Anodized single barrel extrusions
Various bore sizes, 25, 32, 40, and 50mm
G or NPT ports available
Ambient temperature range from -20oC to + 80oC (–4oF to +175oF)
產品描述：美國ASCO是一家主要生產和銷售流體控制閥以及氣動控制元件的跨國公司，具有100多年的生產技術經驗，在全球擁有超過30家工廠，為客戶提供超過23,000種的流體控制產品。
在線訂購

產品描述服務承諾訂貨流程溫馨提示

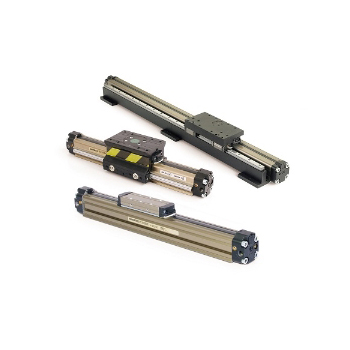

Cylinders & Actuators - Single Barrel Rodless - Numatics Series NR
Double Acting - Guided and Non-Guided - 25 to 50mm

The NR Series rodless offers an alternative solution to conventional cylinder applications. It's compact design cuts space requirement by 50% compared to rodded cylinders. Additionally, the extruded tube construction requires fewer supports than other cylinders. Dual air supply at one end eliminates tubing going to the opposite end of the cylinder. This design prevents interference with the operation of the cylinder.

Standard Specifications:

1）Anodized single barrel extrusions
2）Various bore sizes, 25, 32, 40, and 50mm
3）G or NPT ports available
4）Retained cushion adjustments
5）Kevlar reinforced thermosplastics strip seals
6）Up to 10bar (145 psig) working pressure
7）Ambient temperature range from -20oC to + 80oC (–4oF to +175oF)
8）Uses filtered air with or without lubrication
9）Standard stroke lengths up to 6 meters (19.5')
10）Operating Speeds up to 3 m/sec (9.75ft./sec)

Applications Include:

1）Material Handling - Parts handling with an overhead gantry
2）Manufacturing and process - Tool and parts carrier/automotive
3）Packaging - Corrugated box erector - Plastic heat seal equipment
