ASCO 美國阿斯卡

ASCO選型 numatics-series-2009

Fieldbus Electronics and I/O Capable
Plug-in solenoid pilot provides fast response
Pilot light indicates when power is supplied to solenoid
Valve unit to base integral wiring plug
產品描述：美國ASCO是一家主要生產和銷售流體控制閥以及氣動控制元件的跨國公司，具有100多年的生產技術經驗，在全球擁有超過30家工廠，為客戶提供超過23,000種的流體控制產品。
在線訂購

產品描述服務承諾訂貨流程溫馨提示

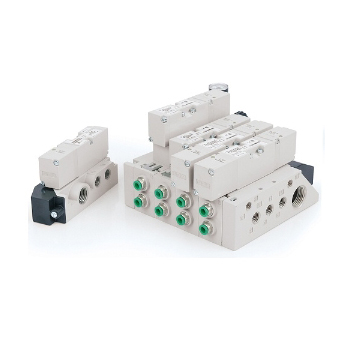

Pneumatic Valve - Directional Control Valve - 4 Way: 5/2, 5/3 - Numatics Series 2009
Solenoid Pilot Valve - Manifold - Discrete - 1/8, 1/4

Solenoid pilot actuated valves. Plug-in base or manifold mount with optional plug-in tubing connections and terminal block for ease of wiring. Lightweight magnesium alloy valve body. Multi-purpose 5-ported, 4-way, 2 and 3 position. Lapped spool & sleeve assembly.

Standard Specifications:

1）Cv: 0.9
2）Port Sizes: 1/8, 1/4 NPTF & G
3）Flow Capacity: 28 SCFM @ 80 PSIG / 591 NI/m @ 6 bar
4）Operating Pressure Range: 28" Hg. Vacuum to 150 PSIG / Vacuum to 10 bar
5）Pilot Pressure Range: 14.5 to 120 PSIG / 1 to 8.23 bar
6）Temperature Range (Ambient): -10°F to +115°F / -23°C to +46°C
Features:

1）Fieldbus Electronics and I/O Capable
2）Plug-in solenoid pilot provides fast response
3）Pilot light indicates when power is supplied to solenoid
4）Valve unit to base integral wiring plug
5）Flush non-locking manual override
6）Lightweight magnesium alloy valve body
7）Multi-purpose - 5 ported, 4 way, 2 and 3 position
8）Time proven lapped spool and sleeve assembly
9）Operates on lubricated or unlubricated service
10）Integral plug-in regulators available
11）Integral plug-in speed control with adjustments on the same end
12）Plug-in manifold with terminal block for ease of wiring
13）Optional push-in tubing connections on subbases and manifolds
14）Valve body integral recessed gasket provides positive sealing
15）NEMA 4
