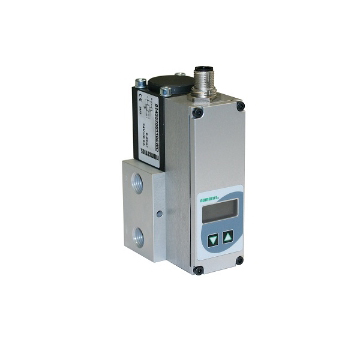

Pneumatic Valve - Proportional Valve - 3 Way - Sentronic Plus - Numatics Series 614
Digital Pressure Control - Sentronic PLUS - 1/8, 1/4, 1/2, 1

The Numatics SentronicPLUS direct-operated 3-way proportional valve with digital control. Valve control loop parameters can be optimized for the application using Data Acquisition Software (DaS) and a PC connection. This valve is designed for applications with very dynamic pressure requirements.

SentronicPLUS Specifications Include:

1）Fluids: Air or neutral gases
2）Pressure Ranges: 0-1.5 psi to 0-725 psi, 0-0.1 bar to 0-50
3）Port Sizes: 1/8, 1/4, 1/2, 1 (NPT or GTap)
4）Flow Capacity: 7.4 to 197.8 SCFM (210 to 5600 l/min at 6 bar)
5）Maximum Pressure: 29 to 870 psi (r)
6）Temperature Range (Ambient): 32°F - 140°F (0°C - 60°C)
SentronicPLUS Features Include:

1）Digital communication and control
2）Application customization with DaS (Data Acquisition Software)
3）Easy change of control parameters
4）Analog feedback output
5）Direct-operated poppet valve
6）Vacuum service
7）Rated for potentially explosive atmospheres
