ASCO 美國阿斯卡

ASCO選型 numatics-608-d-r30

Fluids: Air or neutral gases
Pressure Ranges: 0–50 psi, 0-100 psi, 0-150 psi, 0-3 bar, 0-6 bar, 0-10 bar
Port Sizes: 1/8, 1/4, 3/8 (NPT or GTap)
Flow Capacity: 16.6 to 45.9 SCFM (470 to 1300 l/min at 6 bar)
產品描述：美國ASCO是一家主要生產和銷售流體控制閥以及氣動控制元件的跨國公司，具有100多年的生產技術經驗，在全球擁有超過30家工廠，為客戶提供超過23,000種的流體控制產品。
在線訂購

產品描述服務承諾訂貨流程溫馨提示

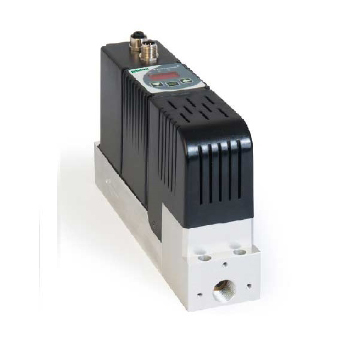

Pneumatic Valve - Proportional Valve - 3 Way - Sentronic D - Numatics Series 608
Digital Pressure Control - Sentronic D - 1/8, 1/4

The Numatics SentronicD is a direct-operated 3-way proportional valve with digital control. Valve control loop parameters can be optimized for the application using Data Acquisition Software (DaS) and a PC connection.

SentronicD Specifications Include:

1）Fluids: Air or neutral gases
2）Pressure Ranges: 0–50 psi, 0-100 psi, 0-150 psi, 0-3 bar, 0-6 bar, 0-10 bar
3）Port Sizes: 1/8, 1/4, 3/8 (NPT or GTap)
4）Flow Capacity: 16.6 to 45.9 SCFM (470 to 1300 l/min at 6 bar)
5）Maximum Pressure: 90 to 190 psi (6 to 13 bar)
6）Temperature Range (Fluid): 32°F - 140°F (0°C - 60°C)
7）Temperature Range (Ambient): 32°F - 122°F (0°C - 50°C)
SentronicD Features Include:

1）Digital communication and control
2）Application customization with DaS (Data Acquisition Software)
3）Easy change of control parameters
4）Analog feedback output
5）Direct-operated poppet valve
6）Optional Display
