                BACCARA 以色列
                • BACCARA 以色列G80-O | Operator 2W, 3W NC, NO
                BACCARA 以色列G80-O | Operator 2W, 3W NC, NO
                BACCARA 以色列G80-O | Operator 2W, 3W NC, NO
                • BACCARA已成為自動化產品制造和產品專業化市場的領導者
                • Baccara Geva Ltd自動化控制于1964年成立于基布茲GEVA在以色列耶斯列谷
                • Baccara空氣閥、氣缸、電磁閥和用于工業，農業和灌溉的尼龍管等產品領域
                • BACCARA電磁閥 空氣閥 氣缸，GEM-SOL、GEVA 80、GEVA 75、GEVA 65、GEVA 60、截止氣缸操作閥
                • 產品描述：G80-O | Operator 2W, 3W NC, NO BACCARA產品 以色列電磁閥 施肥電磁閥 水力驅動閥 BACCARA控制器 氣缸 空氣閥 BACCARA截止閥
                •  在線訂購

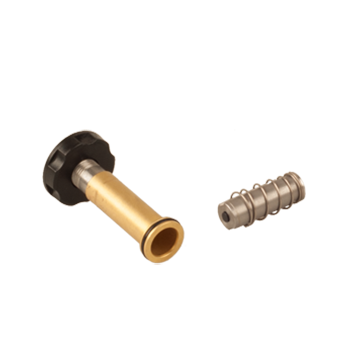

                G80-O | Operator 2W, 3W NC, NO

Orifice size: 1.0 – 1.6 mm

Tube Material: Brass, St.St



Assembly:  Fix the coil with one M8 nut.  Max. tightening torque: 2 N/m.



Function 2 Way, 3 Way NC, NO

Orifice size 1, 1.2, 1.6mm

Pressure range (bars) See solenoid valve performances

Temperature range Fluid : -10oC to 80oC (no freezing)

Ambient : -10oC to 50oC

Response time 5 to 12 ms

Materials in contact

with media

Operator:

Brass or Stainless Steel. AISI 300 & 400

series

Shading ring:

Copper

Note : Operator for DC is without shading ring

and may not be used for AC

Orifice:

Stainless Steel

Spring:

Stainless Steel AISI 300 series

Media Air, inert gases, water *

Threads on operator tube M8x0.75 male and M5 or #10UNF female to

connect exhaust, muffler etc.

Operator assembly Fix the coil with one M8 nut.

Max. tightening torque : 2 N/m

Coil fixing On a G80 operator with M8x0.75 nut

Coil data See technical G80 coil & wide coil data

Coil voltage ? Voltage and power consumption - see table

? All Baccara coil voltages are ±10% of nominal
