BACCARA 以色列 G60 | Latch, pulse operated 3W

BACCARA已成為自動化產品制造和產品專業化市場的領導者
Baccara Geva Ltd自動化控制于1964年成立于基布茲GEVA在以色列耶斯列谷
Baccara空氣閥、氣缸、電磁閥和用于工業，農業和灌溉的尼龍管等產品領域
BACCARA電磁閥空氣閥氣缸，GEM-SOL、GEVA 80、GEVA 75、GEVA 65、GEVA 60、截止氣缸操作閥
產品描述：G60 | Latch, pulse operated 3W BACCARA產品以色列電磁閥施肥電磁閥水力驅動閥 BACCARA控制器氣缸空氣閥 BACCARA截止閥
在線訂購

產品描述服務承諾訂貨流程溫馨提示

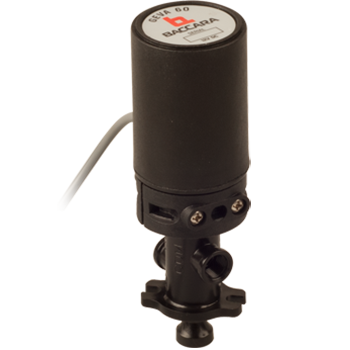

G60 | Latch, pulse operated 3W
Ports size: 1/8″ BSP, NPT
Orifice size: 3.0 mm
Manual override: Plastic
Body material: Plastic

Function 3 Way
Ports size 1/8" BSP & NPT
Orifice size 3mm
Pressure range 0 to 10 bar max.
Kv (l/min) 3.2 l/min
Temperature range Fluid : 5oC to 50oC (no freezing)
Ambient : -10oC to 50oC
Materials in contact
with media
Manual override:
Push/pull - plastic
Main Valve:
Plastic
Seals:
NBR
Spool:
Stainless Steel AISI 303
Media Water
Min. pulse duration 30 ms
Max. pulse duration 100 ms
Electric connection Cable embedded in plastic
Coil resistance
? 5.6 - 24V
? 2.5 - 12V
? 5 - 24V
? 3.4 - 12V
Assembly
? Valve assembly:
In upright position only, with coil facing
upwards and valve below. The cable exiting
from the coil must face downwards.
? Tube assembly:
Only as marked on valve body.
? Filtering:
The fluid must be filtered at level of 120 mesh
at least.
Coil voltage ? All Baccara coil voltages are ± 10% of nominal
Standard protection class IP65
