BACCARA 以色列

BACCARA 以色列 GEM-BE | Explosion proof Coil

BACCARA已成為自動化產品制造和產品專業化市場的領導者
Baccara Geva Ltd自動化控制于1964年成立于基布茲GEVA在以色列耶斯列谷
Baccara空氣閥、氣缸、電磁閥和用于工業，農業和灌溉的尼龍管等產品領域
BACCARA電磁閥空氣閥氣缸，GEM-SOL、GEVA 80、GEVA 75、GEVA 65、GEVA 60、截止氣缸操作閥
產品描述：GEM-BE | Explosion proof Coil BACCARA產品以色列電磁閥施肥電磁閥水力驅動閥 BACCARA控制器氣缸空氣閥 BACCARA截止閥
在線訂購

產品描述服務承諾訂貨流程溫馨提示

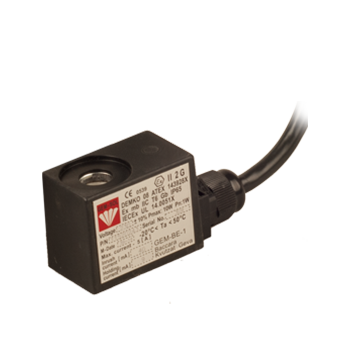

GEM-BE | Explosion proof Coil
Coil winding insulation: H 180°C
Assembly: In any position
Fixing: One nut G1/4″ hexagonal 19mm

Protection type
II 2 G Ex mb IIC T6 Gb IP65 :
? II : Equipment group : All hazardous areas
except mining.
? 2 G (zone 1) : An area in which an explosive
mixture is likely to occur in normal
operation.
Zone 1 : likely to/can exist under normal
operating conditions (include zone 2).
? mb : Type of protection for electrical
apparatus :
Encapsulation for use in zones 1 & 2.
? IIC : Gas groups Acc. IEC, CENELEC and
NEC 505.
Typical gas : Hydrogen
? T6 : Maximum surface temperature : 85oC
? Gb : Equipment Protection Level : Gas
atmospheres, "high" level of protection.
? IP65 : Ingress Protection level
Coil winding insulation Class H (180oC)
Standard / Certification
DEMKO 08 ATEX 143928X
EN 60079-0 : 2012 + A11 : 2013
EN 60079-18 : 2009
Directive 94/9/EC
IECEx UL 14.0051X
IEC 60079-0 : 2011 Edition 6.0
IEC 60079-18 : 2009 Edition 3
Coil duty cycle 100%
Electrical connection PVC cable with 18 AWG (0.75 mm2
) conductors
Assembly In any position, fixing with G1/4" hexagonal nut
Coil voltage ? Voltage and power consumption - see table
? All Baccara coil voltages are ± 10% of nominal

專業制造、專業服務，KUNAG庫納格為你創造更多價值

不斷提升服務質量，精益求精，“真誠的服務”是KUNAG永恒的主題。庫納格嚴格按照 ISO9001-2000 質量體系認證要求，質量嚴格把關，責任到人，確保生產、銷售、服務的健康運行。加強與用戶溝通，竭誠為廣大客戶提供優質產品，至善至美服務，特此我廠做出如下承諾：

產品標準

產品嚴格按照中國 GB、HG 標準和美國 API 等標準設計、制造、驗收。密封面硬度達到國家規定要求，寬度超過國家標準。
