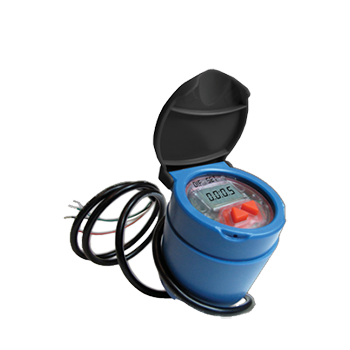

G75-DLS | Digital level switch
Operating temp: -10° to 60°C (no freezing)
Mechanical: Outdoor UV protection
Power supply: 6-24V DC or 12-24V AC
Mounting bracket: Optional
Mechanical
? Operating temperature : -10oC to 60oC
(no freezing)
? Outdoor UV protection
? Front panel cover protection
Electrical
? Power supply : 6-24V DC or 12-24V AC
? RED + BLK power supply
? GRN / WHT N.O contact
? Low power detect
? Dry contact (N.O) 0.5A at 24V AC
? Internal memory to retain "set-up data" at
power down.
Mounting
? 2" (52mm) diameter
? 2ft (60cm) 4 wires cable
? Pressure ports 1/8" BSP/NPT (male)
? High pressure port is marked by the letter "H"
on the housing
? Connect the water tank to the "H" port only
Software See 'Programming key features' table
Display
? The LCD display shows the water level above
the DLS mounting place
? "ON" is displayed when the switch contacts are
closed
Display resolution :
? 10 cm in a range of 0.0 - 70.0m
? 0.01 bar in the range 0.0 - 7 bar
Standard protection class ? Dust and watertight
? IP66
