GENERAL DETAILS

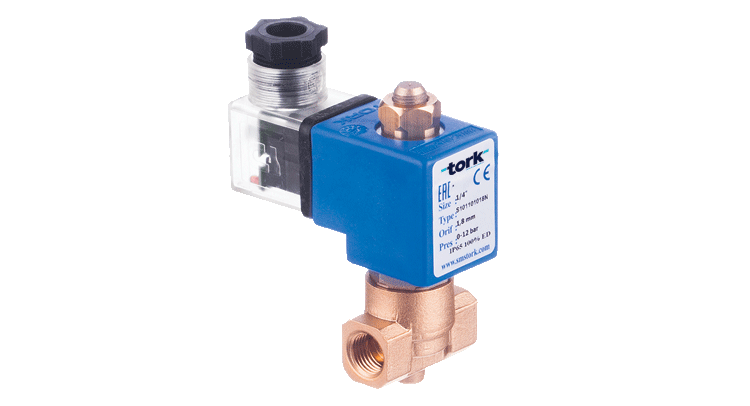

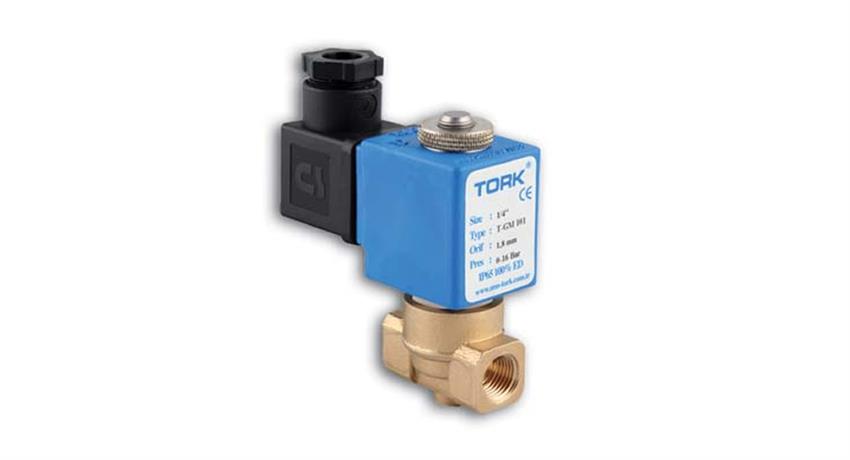

S1013 (TORK-GH) Series General Purpose High Pressure Solenoid Valve , Normally Closed

S1014 Series ( TORK-GHA) General Purpose Solenoid Valves

Application	:	Air, water, gas
Size	:	1/8" … 1" BSP (on request NPT)
Pressure	:	0,5 bar … 40 bar (1/8" , 1/4" …20bar… 200bar)
Tube and internal part	:	Stainless Steel
Body	:	Brass
Seal	:	PTFE+ VITON
Temperature	:	.-10°C…80 °C
Position	:	Normally Closed
Coil Voltage	:	230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC
Protection Class	:	IP65 ve Exproof models

SPECIFICATION

Normally Closed

Valve Type / Order No	Connection Size	Orifice Size (mm)	Pressure (bar)		KV lt/ min	Fluid Temperature		Seal	Weight (kg)
Valve Type / Order No	Connection Size	Orifice Size (mm)	Min	Max	KV lt/ min	Min	Max	Seal	Weight (kg)
S1013.00.010	1/8"	1	0	100	0,6	-10	160	VITON	0,36
S1013.00.018	1/8"	1,8	0	50	1,6	-10	160	VITON	0,36
S1013.00.025	1/8"	2,5	0	20	3,2	-10	160	VITON	0,36
S1013.01.010	1/4"	1	0	100	0,6	-10	160	VITON	0,35
S1013.01.018	1/4"	1,8	0	50	1,6	-10	160	VITON	0,35
S1013.01.025	1/4"	2,5	0	20	3,2	-10	160	VITON	0,35
S1013.02	3/8"	12,5	0,5	40	48	-10	160	PTFE+VITON	0,69
S1013.03	1/2"	14,5	0,5	40	70	-10	160	PTFE+VITON	0,73
S1013.04	3/4"	17	0,5	40	85	-10	160	PTFE+VITON	0,81
S1013.05	1"	17	0,5	40	90	-10	160	PTFE+VITON	0,98

Normally Open

Valve Type / Order No	Connection Size	Orifice Size (mm)	Pressure (bar)		KV lt/ min	Fluid Temperature		Seal	Weight (kg)
Valve Type / Order No	Connection Size	Orifice Size (mm)	Min	Max	KV lt/ min	Min	Max	Seal	Weight (kg)
S1014.02	3/8"	12,5	0,5	40	48	-10	160	PTFE+VITON	0,71
S1014.03	1/2"	14,5	0,5	40	70	-10	160	PTFE+VITON	0,74
S1014.04	3/4"	17	0,5	40	85	-10	160	PTFE+VITON	0,82
S1014.05	1"	17	0,5	40	90	-10	160	PTFE+VITON	0,99
