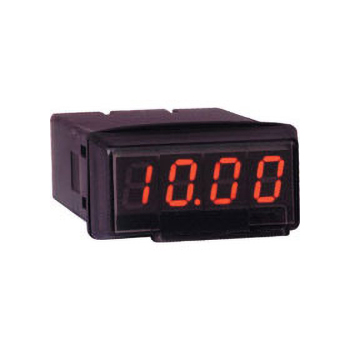

LCI132系列數顯表
產品說明:
1/32 DIN, 可全面編程配置
The LCI132 Series process indicators offer flexibility, and value in a low cost, compact 1/32 DIN package. This family of indicators offers input availability for most types of process measurement.
The LCI 132 has a 7.62 mm( 0.3") high display. The shallow depth of these full size panel meters allows installation in panels only 70 mm (2.76") deep with room to spare.
Inputs are available for Process (0 to 10 V, 4 to 20 mA), AC Volts, AC Amps, DC Volts, and DC Amps.
產品規格：
LCI132-0X
Range: Input Volts (DC): ±200 V, ±20 V, ±10 V; Input Amperes: ±100 mV, ±20 mA;
Resolution: Input Volts (DC): 0.1 V, 0.01 V, 1 mV; Input Amperes: 0.1 mV, 0.01 mA; Input Impedance: Volts: 1 M Ω, mV: 100 M Ω, mA: 12.1 Ω.
LCI132-1X
Range AC: Input Volts: 600.0, 100.0; Input Amperes: 5.000, 1.000;
Range DC: Input Volts: -199.9, ±600.0, ±100.0; Input Amperes: -1.999, +5.000, ±1.000;
Resolution: Input Volts: 0.1 V; Input Amperes: 1 mA Input Impedance: Volts: 3 M Ω (106), Amps: 12 m Ω (10-3).
Accuracy at 23oC ±5oC: 100/600 VDC 1/5 A DC; 600V/5A AC: ±(0.2% reading + 3 digits). 100 V / 1A AC: ±(0.4% reading + 4 digits).
Temperature Coefficient: 100 ppm/°C.
Warm Up: 5 minutes.
Power Supply and Fuses (DIN 41661) (Not supplied)
LCI132-X0: 85–265 VAC 50/60 Hz and 100-300 VDC: Fuse: 0.1A/ 250V.
LCI132-X1: 21-53 VAC 50/60Hz and 10.5-70 VDC: Fuse 0.5A/ 250V.
Display
LCI132-X0: 85–265 VAC 50/60 Hz and 100-300 VDC: Fuse: 0.1A/ 250V.
LCI132-X1: 21-53 VAC 50/60Hz and 10.5-70 VDC: Fuse 0.5A/ 250V.
Environmental
Operating Temperature: -10 to 60°C.
Storage Temperature: -25 to 85°C.
Relative Humidity (non condensed): < 95% @ 40°C.
Panel Sealing: NEMA 4X (IP66).
