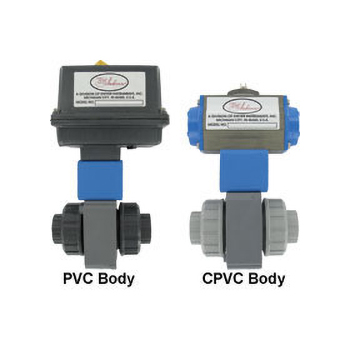

PBV系列工程塑料二通自動球閥
產品說明：
電動和氣動執行機構
PBV系列工程塑料三通自動球閥最適合用于化工，灌溉，游泳池和溫泉系統等。有很好的防泄漏性能，增強的TFE閥座和EPDM密封能保證使用壽命長。全PVC或CPVC的材質，結構牢固，重量輕?？涩F(xiàn)場選擇NPT螺紋連接或套管連接方式。
PBV系列為經濟型的自動控制閥，可配備電動或氣動執行機構。電動執行機構型為NEMA 4 全天候防護，115VAC供電，可選兩位控制或連續控制。兩位式控制采用115VAC直接驅動閥門打開或關閉，連續控制方式接受4-20mA輸入信號，控制閥門到任意位置。執行機構帶有過載保護，閥位指示和自潤滑傳動等功能。
氣動雙作用執行機構采用氣源直接控制兩個進氣孔來打開或關閉閥門，彈簧回位式氣動執行機構采用氣源驅動一個方向，內部彈簧回力驅動另外一個方向?？蛇x擇SV3電磁先導閥來電動控制氣源壓力實現閥門的控制。鋁制結構的執行機構，采用環氧樹脂涂層保護，使得它防腐耐用。
產品規格：
Service: Compatible liquids or gases.
Body: 2-way.
Line Size: 1/2" to 4".
End Connections: Female NPT or socket (for 1/2" through 2"); socket only (for 2- 1/2" through 4").
Pressure Limit: 1/2" to 2": 232 psi (16.0 bar) @ 73°F (23°C); 2-1/2" to 4": 150 psi (10.3 bar) @ 73°F (23°C) WOG. Vacuum: 29" Hg.
Wetted Materials: Body & End Connections: PVC or CPVC; Ball & Stem: PVC or CPVC; Seat: TFE; Stem Seal: EPDM.
Temperature Limit: 32 to 140°F (0 to 60°C).
Other Materials: Stem Bearing: Polypropylene (1-1/4" and up).
ACTUATORS
Electric
Power Requirements: 120 VAC, 50/60 Hz, single phase. Optional 220 VAC, 24 VAC, 12 VDC, and 24 VDC.
Power Consumption (Locked Rotor Current): Two Position: 1/2" to 1-1/2": 0.55A; 2" to 4": 0.75A. Modulating: 1/2" to 2": 0.75A; 2-1/2": 1.1A; 3" to 4": 0.75A.
Cycle Time (per 90°): Two Position: 1/2" to 1-1/2": 2.5 sec.; 2" to 2-1/2": 5 sec.; 3" to 4": 15 sec. Modulating: 1/2" to 2-1/2": 5 sec.; 3" to 4": 15 sec.
Duty Cycle: Two Position: 1/2" to 1-1/2": 75%; 2" to 4": 25%. Modulating: 75%.
Enclosure Rating: NEMA 4. Optional NEMA 7 (Class 1, Div. II, Groups A, B, C, D).
Housing Material: Aluminum with thermal bonding polyester powder finish.
Temperature Limit: 0 to 150°F (-18 to 65°C).
Conduit Connection: 1/2" female NPT.
Modulating Input: 4 to 20 mA.
Standard Features: Manual override and visual position indicator except modulating units.
Pneumatic "DA" and "SR" Series
Type: DA series is double acting and SR series is spring return (rack and pinion).
Normal Supply Pressure: 80 psi (5.5 bar).
Maximum Supply Pressure: 120 psig (8 bar).
Air Connections: DA1 to 5 and SR2 to 5: 1/8" female NPT; all others: 1/4" female NPT.
Air Consumption (per stroke): DA1: 2.32 cu. in.; DA2: 9.34 cu. in.; DA3: 17.21 cu. in.; DA4: 20.5 cu. in.; SR2: 9.34 cu. in.; SR3: 17.21 cu. in.; SR6: 54.34 cu. in.; SR7: 85.43 cu. in.
Cycle Time (per 90°): DA1: .03 sec.; DA2: .04 sec.; DA3: .08 sec.; DA4: .12 sec.; SR2: .09 sec.; SR3: .14 sec.; SR6: .46 sec.; SR7: .83 sec.
Housing Material: Anodized aluminum body and epoxy coated aluminum end caps.
Temperature Limit: -4 to 180°F (-20 to 82°C).
Accessory Mounting: NAMUR standard.
Standard Features: Visual position indicator.
