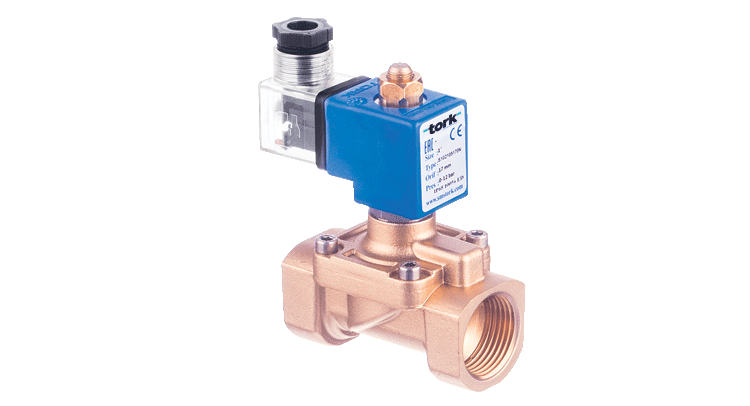

S1020(TORK-GZ) Series Differential Pressure Zero Solenoid Valve , Normally Closed
S1021(TORK-GZN) Series Differential Pressure Zero Solenoid Valve , Normally Open
| Application | : | Air, water, gas | ||||||||
| Size | : | 3/8" … 1" BSP (on request NPT) | ||||||||
| Pressure | : | 0,15 - 16 Bar ( Differential Pressure Zero , min 0,15 mbar input) | ||||||||
| Tube and internal part | : | Stainless Steel | ||||||||
| Body | : | Brass | ||||||||
| Seal | : | NBR | ||||||||
| Temperature | : | .-10°C…80 °C | ||||||||
| Position | : | Normally Closed, Normally Open | ||||||||
| Coil Voltage | : | 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC | ||||||||
| Protection Class | : | IP65 ve Exproof models | ||||||||
| Valve Type / Order No | Connection Size | Orifice Size (mm) | Pressure (bar) | KV lt/ min | Fluid Temperature | Seal | Weight (kg) | |||
| Min | Max | Min | Max | |||||||
| S1020.02 | 3/8" | 12,5 | 0,15 | 16 | 48 | -10 | 80 | NBR | 0,69 | |
| S1020.03 | 1/2" | 14,5 | 0,15 | 16 | 70 | -10 | 80 | NBR | 0,73 | |
| S1020.04 | 3/4" | 17 | 0,15 | 16 | 85 | -10 | 80 | NBR | 0,81 | |
| S1020.05 | 1" | 17 | 0,15 | 16 | 90 | -10 | 80 | NBR | 0,98 | |
| Valve Type / Order No | Connection Size | Orifice Size (mm) | Pressure (bar) | KV lt/ min | Fluid Temperature | Seal | Weight (kg) | |||
| Min | Max | Min | Max | |||||||
| S1021.02 | 3/8" | 12,5 | 0,15 | 16 | 48 | -10 | 80 | NBR | 0,71 | |
| S1021.03 | 1/2" | 14,5 | 0,15 | 16 | 70 | -10 | 80 | NBR | 0,74 | |
| S1021.04 | 3/4" | 17 | 0,15 | 16 | 85 | -10 | 80 | NBR | 0,82 | |
| S1021.05 | 1" | 17 | 0,15 | 16 | 90 | -10 | 80 | NBR | ||
