GENERAL DETAILS

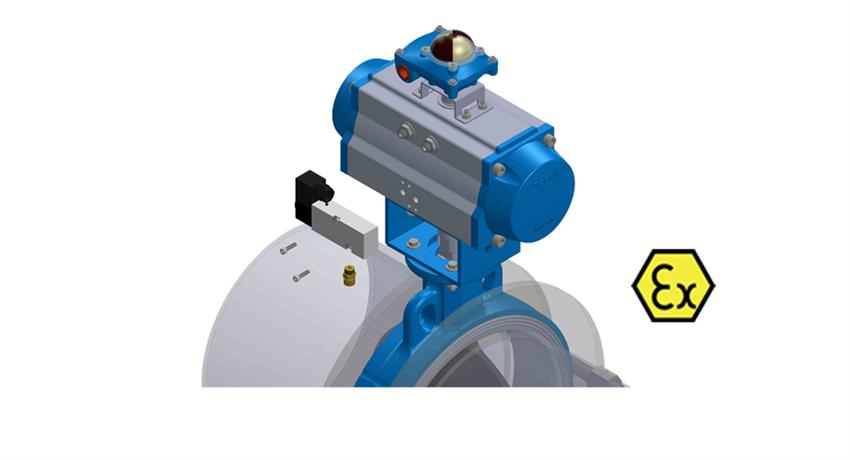

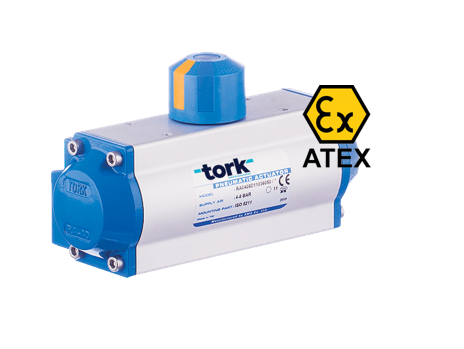

RX ... DA and RX...SR Series ATEX certificated Actuators

Application	:	Ball Valve, Butterfly Valve, Plug Valve, Dampers on-off / proportional control
Size	:	RX 32 DA … RX 350 DA / RX 40 SR ... RX 350 SR
Supply Pressure Air	:	4 - 8 bar
Output Tork Value	:	9 Nm … 5162 Nm for double Acting / 5Nm ...1943Nm for spring return
Body	:	Extruded Aluminium / Cast Aluminium
Caps and Pistons	:	Die cast Aluminium
Temperature	:	-20 oC...80 oC, optional; -50 oC...80 oC
Valve Connection	:	ISO 5211 / DIN3337 standard
Limit Switch Connection	:	Namur standard, VDI / VDE3845
Positioner Connection	:	Namur standard, VDI / VDE3845
Solenoid Valve Connection	:	Namur standard, VDI / VDE3845
Stroke Adjustment	:	Both directions open and close positions ( ±5%)
Change to Single Acting	:	Add springs

SPECIFICATION

Order No	Torque Value (6 bar)	Nm	Valve Connection ISO5211	Open- close time (sn)
TORK-RX 32 DA	9	Nm	F03	0,1....0,1
TORK-RX 40 DA	15,8	Nm	F03/F04	0,22...0,26
TORK-RX 60 DA	39	Nm	F04/F05/F07	0,27....0,33
TORK-RX 80 DA	103,7	Nm	F05/F07	0,39...0,48
TORK-RX 100 DA	168,7	Nm	F07/F10	0,52....0,63
TORK-RX 120 DA	318,6	Nm	F07/F10	0,95.....1,15
TORK-RX 160 DA	765	Nm	F10/F14	2,60....2,30
TORK-RX 200 DA	1500	Nm	F14/F16	3,40....3,20
TORK-RX 270 DA	3042,65	Nm	F16	4,3...4,05
TORK-RX 350 DA	5162	Nm	F16	5,20....4,90
