Application
Water, Air, Steam, Gas, natural gas, Chemicals, Petroleum products, Food, Pharmaceutical products, Sterilization, Water treatment, Dyeing, Cleaning plants,

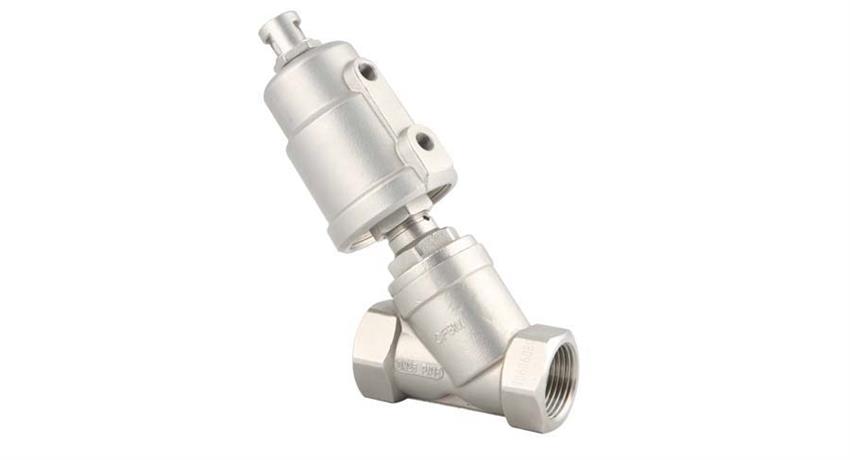

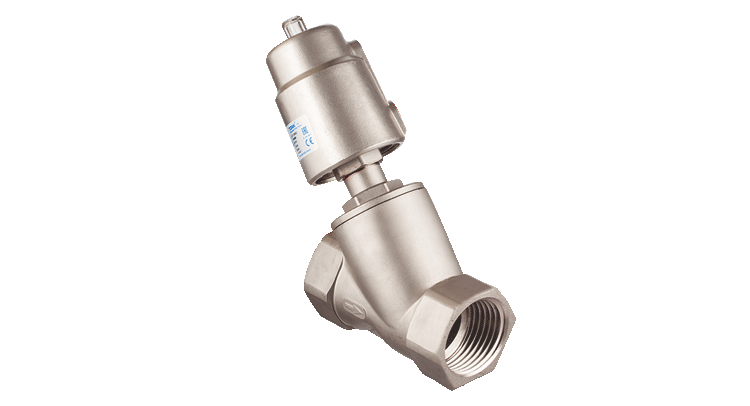

| Type | : | Pneumatic Actuated Angle Seat, Piston Valve | |||||||||
| Connection | : | Screwed G (BSP) | |||||||||
| Function | : | Normally Closed | |||||||||
| Working Temperature | : | .-10 … +180°C | |||||||||
| Max. Operating Pressure | : | 16 bar | |||||||||
| Recommended Control Air Supply | : | 4-6 bar | |||||||||
| Air Supply Connection | : | 1/4" G | |||||||||
| Body | : | All body AISI 316 stainless steel | |||||||||
| Sealing Material | : | PTFE (optional Viton, EPDM) | |||||||||
| On Request | : | NPT screwed connection | |||||||||
| Way | : | 2/2 way | |||||||||
TECHNICAL SPECIFICATION
|
Connection Size G" |
Orifice Size mm |
Pressure (Bar) | Control Cylinder | KV It/min | Fluid Temperature °C | Gasket |
Valve Type / Order No |
Weight (Kg) |
|||
| Min | Max. | Min | Max | ||||||||
| 1/2" | 13 | .-1 | 16 | 63 | 98 | -10 | 180 | PTFE | PP1050.03 | 836 | |
| 3/4" | 20 | .-1 | 16 | 63 | 170 | -10 | 180 | PTFE | PP1050.04 | 1134 | |
| 1" | 25 | .-1 | 16 | 63 | 305 | -10 | 180 | PTFE | PP1050.05 | 1367 | |
| 1 1/4" | 32 | .-1 | 16 | 80 | 460 | -10 | 180 | PTFE | PP1050.06 | 2424 | |
| 1 1/2" | 40 | .-1 | 16 | 80 | 750 | -10 | 180 | PTFE | PP1050.07 | 2817 | |
| 2" | 50 | .-1 | 16 | 80 | 1050 | -10 | 180 | PTFE | PP1050.08 | 3776 | |
