GENERAL DETAILS

Operation	:	On-off (optional proportional except REA 40 &REA 80 )
Power Supply	:	220 V AC, (on request 24 V DC, 380 VAC)
On-Off Time	:	12sn....34sn (50/60Hz)
Output Torque	:	40 Nm…150 Nm
Protectional Class	:	IP67
Working Pressure	:	.-20°C …70°C
ISO Connection	:	ISO5211standart F03/F05/F07
Optional	:	LCU Local Control Unit , PIU potentiometer ,CPT Current Position Transmitter
TORK-KV 907 Ball Valve Details
Body	:	Full Bore, Carbon Steel , 3 pcs body, Flanged
Connection Sizes	:	DN15…DN200
actuator Selection	:	REA 40 (DN15) , REA 60 (DN20... DN 40),REA 80 (DN 50, DN65) ,REA150 (DN80,DN100), REA 200 (DN125), REA 600(DN150),REA1200 (DN 200)
Operation	:	2/2 Way
O-ring	:	PTFE
Pressure	:	PN16, PN40
Working Temperature	:	-30°C …180°C
Working Pressure	:	PN 40 bar(DN15..DN50 ) , 16 bar(DN65…DN200)

TECHNICAL SPECIFICATION

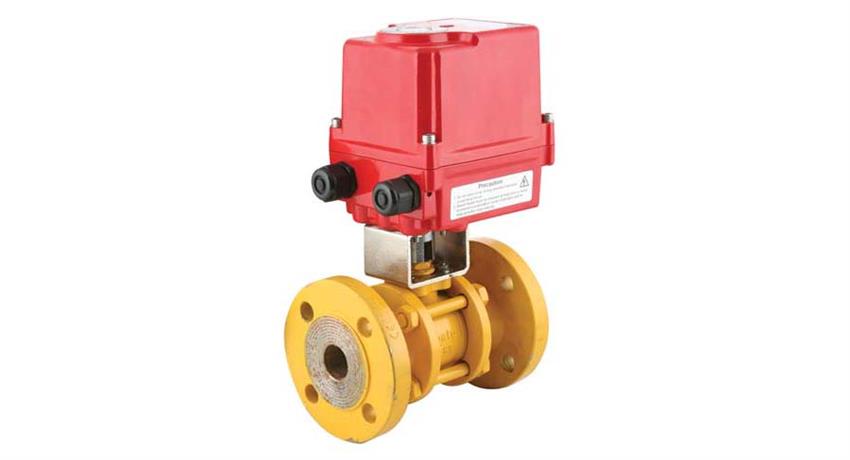

TORK-EAV 907 Electric Actuated Carbon Steel Flanged Ball Valve, 2/2Way

DN	Connection Sizes	Code No	Way	Pressure	Temperature	ISO Connection
DN15	1/2"	EAV907.15	2/2	0-40 bar	-30°C …180°C	F03
DN20	3/4"	EAV907.20	2/2	0-40 bar	-30°C …180°C	F03
DN25	1"	EAV907.25	2/2	0-40 bar	-30°C …180°C	F03 /F04
DN32	11/4"	EAV907.32	2/2	0-40 bar	-30°C …180°C	F04 /F05
DN40	11/2"	EAV907.40	2/2	0-40 bar	-30°C …180°C	F04 /F05
DN65	21/2"	EAV907.65	2/2	0-16 bar	-30°C …180°C	F05
DN80	3"	EAV907.80	2/2	0-16 bar	-30°C …180°C
DN100	4"	EAV907.100	2/2	0-16 bar	-30°C …180°C
DN125	5"	EAV907.125	2/2	0-16 bar	-30°C …180°C
DN150	6	EAV907.150	2/2	0-16 bar	-30°C …180°C
DN200	8"	EAV907.200	2/2	0-16 bar	-30°C …180°C

TORK-EAV 907P Proportional Electric Actuated Carbon Steel Flanged Ball Valve, 2/2Way

DN	Connection Sizes	Code No	Way	Pressure	Temperature	ISO Connection
DN15	1/2"	EAV907P.15	2/2	0-40 bar	-30°C …180°C	F03
DN20	3/4"	EAV907P.20	2/2	0-40 bar	-30°C …180°C	F03
DN25	1"	EAV907P.25	2/2	0-40 bar	-30°C …180°C	F03 /F04
DN32	11/4"	EAV907P.32	2/2	0-40 bar	-30°C …180°C	F04 /F05
DN40	11/2"	EAV907P.40	2/2	0-40 bar	-30°C …180°C	F04 /F05
DN65	21/2"	EAV907P.65	2/2	0-16 bar	-30°C …180°C	F05
DN80	3"	EAV907P.80	2/2	0-16 bar	-30°C …180°C
DN100	4"	EAV907P.100	2/2	0-16 bar	-30°C …180°C
DN125	5"	EAV90P7.125	2/2	0-16 bar	-30°C …180°C
DN150	6	EAV907P.150	2/2	0-16 bar	-30°C …180°C
DN200	8"	EAV907P.200	2/2	0-16 bar	-30°C …180°C
