GENERAL DETAILS

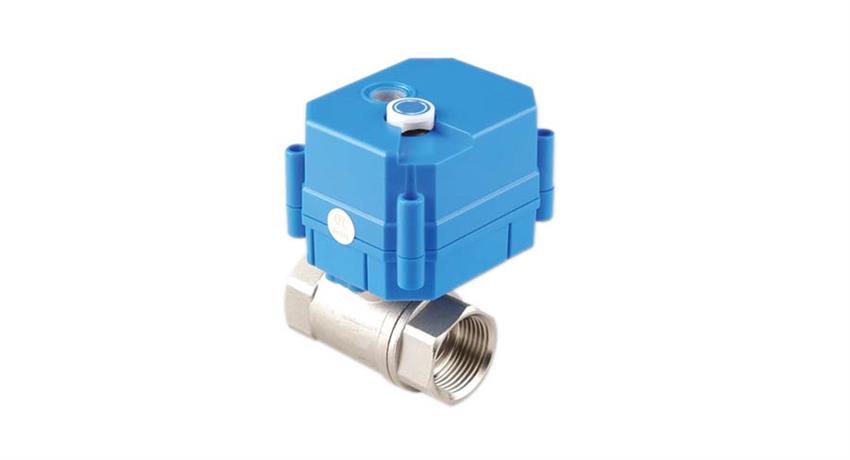

S9190 Series / Electric Motorised Zone Valve

Usage Areas	:	Heating,Cooling ,Air Conditioning Systems, Water Purification Systems,Chemicals Process
		In automation system,when small size valve need, ?f the fluid is particles or viscous so you can
		recommend this mini motorised valve replace to solenoid valves.
Applications	:	Working in 0 bar pressure (If the Input pressure low or the systems which fluid move by itself)
Size	:	1/4'',3/8'',1/2'',3/4'',1'',11/2''
Body	:	standart : Stainless Steel On request: Brass Body
Way	:	2/2 way , 3/2 way
Temparature	:	20°C …80°C water,hot water
Working Voltage	:	220V AC ,standart
Optional 1	:	24V DC or AC
Optional 2	:	On request :5V,12V,110V AC/DC
Open/Close Time	:	5-7 seconds

TECHNICAL SPECIFICATIONS

2/2 Way Stainless Steel 220V 50Hz Mini Motorised Ball Valve
Type No	Valve Size	Power Supply	Control Type	Pressure	Temparature	Open/Close	Weight
S9190.01.220	1/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,26
S9190.02.220	1/2''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,37
S9190.03.220	3/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52
S9190.04.220	1''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52

24 V AC /DC Motorised 2/2 Way Stainless Steel Body with Ball Valve
Type No	Valve Size	Power Supply	Control Type	Pressure	Temparature	Open/Close	Weight
S9190.01.220	1/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,26
S9190.02.220	1/2''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,37
S9190.03.220	3/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52
S9190.04.220	1''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52

220 V 50Hz Motorised Valve 3/2 Way Stainless Steel Body with Ball Valve
Type No	Valve Size	Power Supply	Control Type	Pressure	Temparature	Open/Close	Weight
S9190.01.220	1/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,26
S9190.02.220	1/2''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,37
S9190.03.220	3/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52
S9190.04.220	1''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52

24 V AC /DC Motorised 3/2 Way Stainless Steel Body with Ball Valve
Type No	Valve Size	Power Supply	Control Type	Pressure	Temparature	Open/Close	Weight
S9190.01.220	1/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,26
S9190.02.220	1/2''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,37
S9190.03.220	3/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52
S9190.04.220	1''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52
