GENERAL DETAILS

ACTUATOR:

Materials

:

Steel, aluminium alloy, al-bronze, polycarbonate.

Torques Output

:

40 Nm … 3000 Nm

Enclosure

:

Weatherproof enclosure IP67, NEMA 4 and 6

Travel Angle

:

90° ±10° (0° … 110°)

Manuel Override

:

Declutching mechanism (8 cycles open and close)

Power Supply

:

220V AC, 1PH (on request 110V AC / 24V DC), (0,4A … 0,19A)

Motor

:

Squirrel caged inducation, reversible

Limit Switches

:

2 x open / close, SPDT, 250 V AC, 10A rating (on request additional +2 switches)

Ambient Temp.

:

.-20°C … 70°C (except option electronic board)

Cable Connection

:

2 PG 13,5 fittings

Flange Connection

:

ISO5211 standard (F03/F05/F07)

Open and Close Time

:

12 - 14 seconds

TORK-KV.W Butterfy alve

Body

:

GG25 Epoxy or Rilsan Coated

Size

:

NW25" ….. NW600"

Body Type

:

Wafer type

Disc

:

Stainless steel, on request: GG25 epoxy coated

Seat

:

EPDM (-30 … 140°C) on request: Viton, PTFE, Silicon

Pressure

:

PN10, PN16

Temperature

:

.-30 … 140°C

TECHNICAL DETAILS

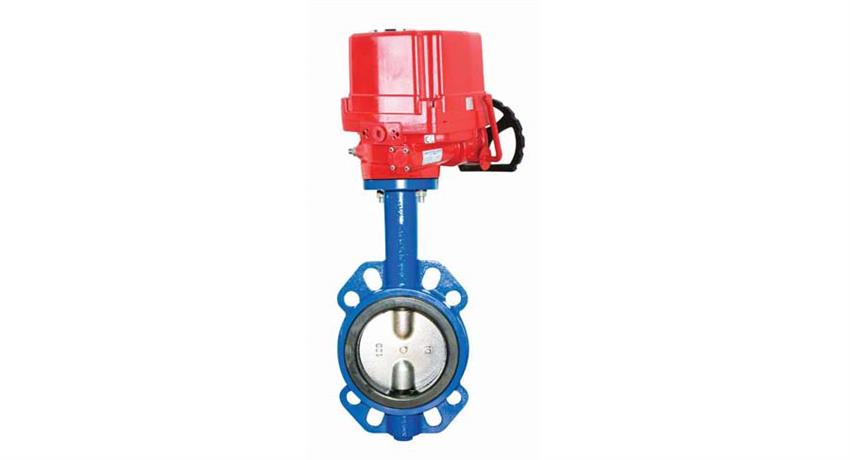

TORK-EAV 800 Electric Actuated Wafer Butterfly Valve (121 Series)

Connection Size	Order No	Disc	Seat	Pressure	Temperature	ISO Connection
NW50	EAV800.50.AC	AISI 316 SS	EPDM	PN16	-30..130 C	F03
NW65	EAV800.65.AC	AISI 316 SS	EPDM	PN16	-30..130 C	F03
NW80	EAV800.80.AC	AISI 316 SS	EPDM	PN16	-30..130 C	F03 /F04
NW100	EAV800.100.AC	AISI 316 SS	EPDM	PN16	-30..130 C	F04 /F05
NW125	EAV800.125.AC	AISI 316 SS	EPDM	PN16	-30..130 C	F04 /F05
NW150	EAV800.150.AC	AISI 316 SS	EPDM	PN16	-30..130 C	F05
NW200	EAV800.200.AC	AISI 316 SS	EPDM	PN16	-30..130 C
NW250	EAV800.250.AC	AISI 316 SS	EPDM	PN16	-30..130 C
NW300	EAV800.300.AC	AISI 316 SS	EPDM	PN16	-30..130 C
NW350	EAV800.350.AC	AISI 316 SS	EPDM	PN10 /PN16	-30..130 C
NW400	EAV800.400.AC	AISI 316 SS	EPDM	PN10 /PN16	-30..130 C
NW 450	EAV800.450.AC	AISI 316 SS	EPDM	PN10 /PN16	-30..130 C
NW500	EAV800.500.AC	AISI 316 SS	EPDM	PN10 /PN16	-30..130 C
NW600	EAV800.600.AC	AISI 316 SS	EPDM	PN10 /PN16	-30..130
