GENERAL DETAILS

Application:
Water, air, steam , gas, chemicals , petrolium products, food, medicine, sanitary applications, threatment , packing machines, drinking water facilities, vacumm, oil, petrol , hyraulic oil, natural gas , acid, chill water
Technical Specifications:

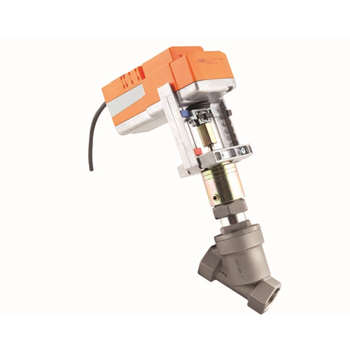

Type :Motorized Piston Valve
Actuator Details
Power : 24V AC 50-60Hz/24VDC
Power Consumption : 2W
Power in out of gear :0.5W
Electric Connection :4x0.75mm2 kablo
Control Signal : 0-10VDC(Proportional models)
Working Time: 35sn/15mm
Sensitivity :%5
Torque Value : 500N, 1000N, 1500N or 2500N
Manuel Override: with 4mm allen key
Protection Class: IP54

Valve Specification:
Connection : Threaded (G (BSP) On request NPT
Position: Normally Closed / Normally Open
Working Temperature : -10 / +180°C
Max. Working Pressure :16 bar
Body : AISI 316 SS
Sealing : PTFE (on request Viton or EPDM)

TECHNICAL SPECIFICATION

EP 1020 Series On/Off Motorized Angle Seat Valve
Code /Order No	Connection Size G"	Ofice Size mm	Working Pressure (bar)		Flow Rate It/min	Working Temperature °C		Seal
Code /Order No	Connection Size G"	Ofice Size mm	Min	Max	Flow Rate It/min	Min	Max	Seal
EP 1020-03	1/2"	15	0	16	98	-10	180	PTFE
EP 1020-04	3/4"	20	0	16	170	-10	180	PTFE
EP 1020-05	1"	25	0	16	305	-10	180	PTFE
EP 1020-06	1 1/4"	32	0	16	460	-10	180	PTFE
EP 1020-07	1 1/2"	40	0	16	750	-10	180	PTFE
EP 1020-08	2"	50	0	12	1050	-10	180	PTFE

EOP 1020 Series Proportional Control Motorized Angle Seat Valve
Code /Order No	Connection Size G"	Ofice Size mm	Working Pressure (bar)		Flow Rate It/min	Working Temperature °C		Seal
Code /Order No	Connection Size G"	Ofice Size mm	Min	Max	Flow Rate It/min	Min	Max	Seal
EOP 1020-03	1/2"	15	0	16	98	-10	180	PTFE
EOP 1020-04	3/4"	20	0	16	170	-10	180	PTFE
EOP 1020-05	1"	25	0	16	305	-10	180	PTFE
EOP 1020-06	1 1/4"	32	0	16	460	-10	180	PTFE
EOP 1020-07	1 1/2"	40	0	16	750	-10	180	PTFE
EOP 1020-08	2"	50	0	12	1050	-10	180	PTFE
