| GENERAL DETAILS | ||
| Between DN 20 and DN 40 Threaded Connections | ||
| Between DN 20 and DN 300 Flanged Connections | ||
| Max.Working Pressure | : | 10 Bar |
| Max.Working Temperature | : | 110°C |
| Body | : | Carbon Steel |

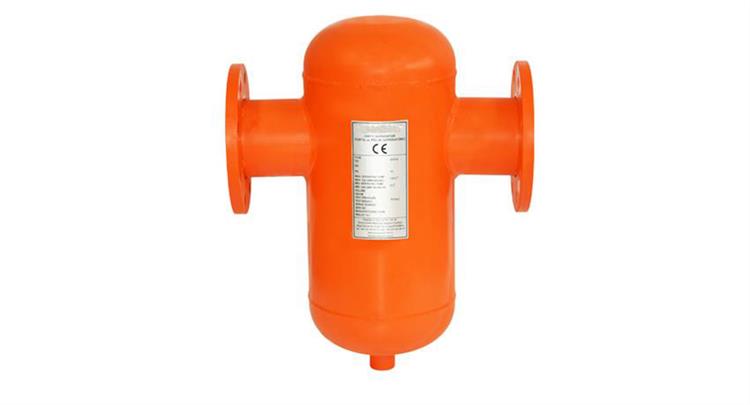

| There are Five types of Seperators; |
| 1- Vorteks Seperator |
| * Rugged, lightweight and maintenance-free design |
| * Production from welded construction, carbon steel and stainless steel |
| * Flanged, threaded and socket connection options in ISO, D?n and ANSI norms |
| * Production in special dimensions for assembly easiness in necessary conditions |
| * In all production units, pressure resistance and leakage tests |
| 2-Residue and Waste Seperator |
| * While difficulties in cleaning and maintenance of conventional strainers are removed, possible defaults caused by |
| these difficulties are prevented. |
| * Due to occlusions in water flow direction that may occur in conventional strainer, blockage of flow is prevented. |
| * Without stopping the system helps easily cleaning. |
| * Accumulated residues and dirts are easily evacuated with valve under the device. |
| 3-Air Seperators |
| * By collecting the air, provides evacuation. |
| * Continuously evacuates air while system is operating and without stopping the pump. |
| * While filling water to the facility, top relief valve and air purger can be assembled to evacuate the air. |
| * For the evacuation of possible accumulations, global valve connection plug is present in the below part of the device. |
| 4-Residue, Waste and Air Seperator |
| * It is a type in which the properties of residues, dirts and air separator are accumulated in a single device. |
| *Dirt and air separator, both air and residue and dirt in the system can be evacuated. |
| * By collecting the air, provides evacuation |
| * Continuously evacuates air while system is operating and without stopping the pump. |
| * While filling water to the facility, top relief valve and air purger can be assembled to evacuate the air. |
| * For the evacuation of possible accumulations, global valve connection plug is present in the below part of the device. |
| * While difficulties in cleaning and maintenance of conventional strainers are removed, possible defaults caused by |
| these difficulties are prevented. |
| * Due to occlusions in water flow direction that may occur in conventional strainer, blockage of flow is prevented. |
| * Without stopping the system helps easily cleaning. |
| * Accumulated residues and dirts are easily evacuated with valve under the device. |
