GENERAL DETAILS

Application

:

Liquid, gas, air, water, hot water, steam, Natural gas, LPG gas

Type No

:

PAV 908F…DA / PAV 908F SR

On Request

:

Limit switch box, positioner, namur solenoid valve, manuel override

Actuator

:

RA…DA Double Acting Actuators / RA…SR Single Acting Actuators

Air Supply

:

4-6 bar, Stroke adjustment

Valve Code

:

TORK-KV 908

Valve Body Material

:

Carbon Steel

Connection

:

Flanged

Pressure

:

PN16 or PN 40

Temperature

:

.-30 … 180°C

Size

:

DN 15 … DN 150

TECHNICAL SPECIFICATION

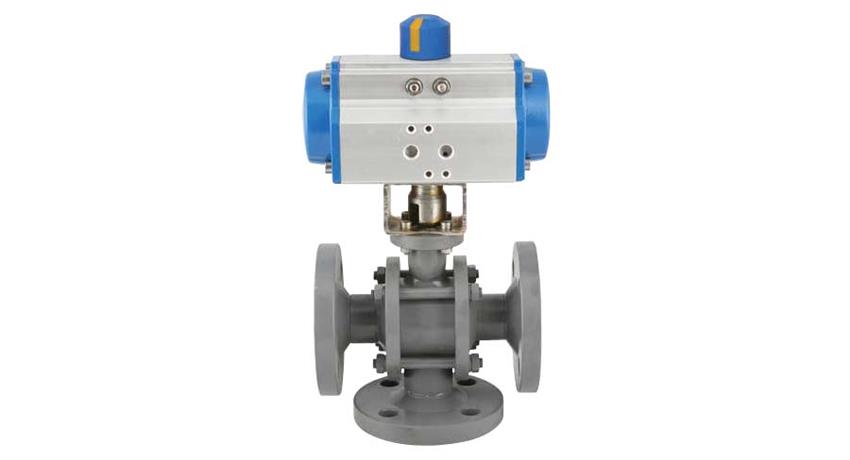

TORK-PAV 908F.DA Double Acting Carbon Steel 3/2 way Ball Valve , Flanged Connection

Connection size	Order No	Way	Pressure	Temperature	ISO Connection
NW15	TORK-PAV908F.15DA	3/2	0-40 bar	-30..180 C	F03
NW20	TORK-PAV908F.20DA	3/2	0-40 bar	-30..180 C	F03
NW25	TORK-PAV908F.25DA	3/2	0-40 bar	-30..180 C	F03 /F04
NW32	TORK-PAV908F.32DA	3/2	0-40 bar	-30..180 C	F04 /F05
NW40	TORK-PAV908F40DA	3/2	0-40 bar	-30..180 C	F04 /F05
NW50	TORK-PAV908F.50DA	3/2	0-40 bar	-30..180 C
NW65	TORK-PAV908F.65DA	3/2	0-40 bar	-30..180 C
NW80	TORK-PAV908F.80DA	3/2	0-40 bar	-30..180 C
NW100	TORK-PAV908F.100DA	3/2	0-40 bar	-30..180 C
NW125	TORK-PAV908F.125DA	3/2	0-40 bar	-30..180 C
NW150	TORK-PAV908F.150DA	3/2	0-40 bar	-30..180 C

TORK-PAV 908F.SR Spring Return Actuated Carbon Steel Ball Valve , Flanged Connection

Connection Size	Order No	Way	Pressure	Temperature	ISO Connection
NW15	TORK-PAV908F.15SR	3/2	0-40 bar	-30..180 C	F03
NW20	TORK-PAV908F.20SR	3/2	0-40 bar	-30..180 C	F03
NW25	TORK-PAV908F.25SR	3/2	0-40 bar	-30..180 C	F03 /F04
NW32	TORK-PAV908F.32SR	3/2	0-40 bar	-30..180 C	F04 /F05
NW40	TORK-PAV908F.40SR	3/2	0-40 bar	-30..180 C	F04 /F05
NW50	TORK-PAV908F.50SR	3/2	0-40 bar	-30..180 C
NW65	TORK-PAV908F.65SR	3/2	0-40 bar	-30..180 C
NW80	TORK-PAV908F.80SR	3/2	0-40 bar	-30..180 C
NW100	TORK-PAV908F.100SR	3/2	0-40 bar	-30..180 C
NW125	TORK-PAV908F. 125SR	3/2	0-40 bar	-30..180 C
NW150	TORK-PAV908F.150SR	3/2	0-40 bar	-30..180 C
