GENERAL DETAILS

Application

:

Liquid, gas, air, water, hot water, steam, Natural gas, LPG gas

Type No

:

PAV 909…DA / PAV 909 SR

On Request

:

Limit switch box, positioner, namur solenoid valve, manuel override

Actuator

:

RA…DA Double Acting Actuators / RA…SR Single Acting Actuators

Air Supply

:

4-6 bar, Stroke adjustment

Valve Code

:

TORK-KV 909

Valve Body Material

:

AISI 304 SS or AISI 316 SS

Connection

:

Monoblock

Pressure

:

PN 40

Temperature

:

.-30 … 180°C

Size

:

DN 15 … DN 150

TECHNICAL SPECIFICATION

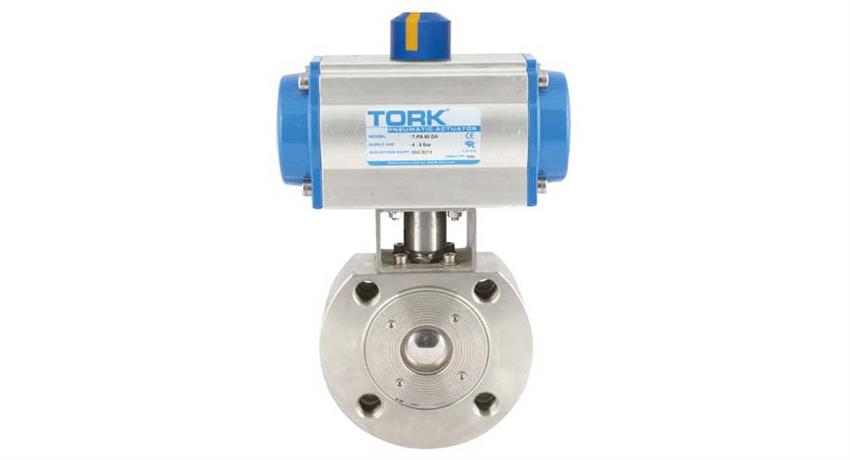

TORK-PAV 909 Pneumatic Actuated Monoblock Ball Valves, 2/2 Way

Connection Size	Order Number	Way	Pressure	Temperature	ISO Standart
DN15	TORK-PAV 909.15SR/DA	2/2	0-40 bar	-30..180 C	F03
DN20	TORK-PAV 909.20SR/DA	2/2	0-40 bar	-30..180 C	F03
DN25	TORK-PAV 909.25SR/DA	2/2	0-40 bar	-30..180 C	F03 /F04
DN32	TORK-PAV 909.32SR/DA	2/2	0-40 bar	-30..180 C	F04 /F05
DN40	TORK-PAV 909.40SR/DA	2/2	0-40 bar	-30..180 C	F04 /F05
DN50	TORK-PAV 909.50SR/DA	2/2	0-40 bar	-30..180 C
DN65	TORK-PAV 909.65SR/DA	2/2	0-40 bar	-30..180 C
DN80	TORK-PAV 909.80SR/DA	2/2	0-40 bar	-30..180 C
DN100	TORK-PAV 909.100SR/DA	2/2	0-40 bar	-30..180 C
DN125	TORK-PAV 909.125SR/DA	2/2	0-40 bar	-30..180 C
DN150	TORK-PAV 909.150SR/DA	2/2	0-40 bar	-30..180 C
DN200	TORK-PAV 909.200SR/DA	2/2	0-40 bar	-30..180 C
